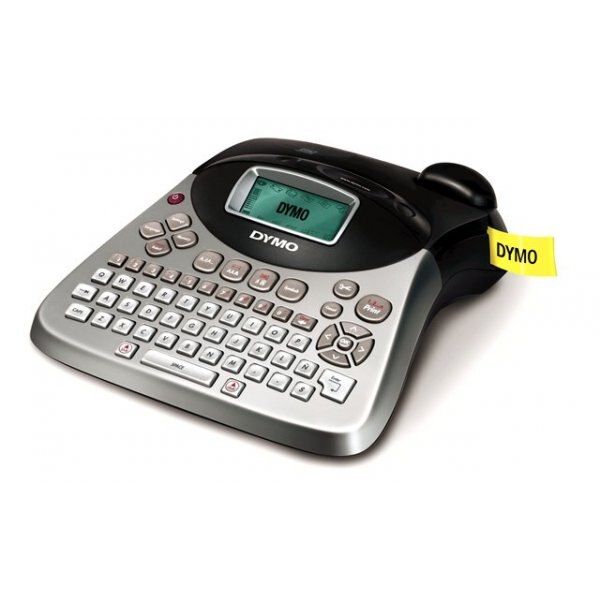

DYMO LABELMANAGER 450 (LM450)

ITEM # SD17118  |   MANUFACTURER #   |   WEIGHT (KGS) 1  |   UPC

uses 6, 9, 12, 19 & 24mm Dymo D1 label tapes



discontinued. Replaced by LM 500TS
More Info / Specifications

For anyone who labels every day and is in search of the superior champion of labelmakers, LabelManager 450D is an automatic choice. It’s the easy way for printing large volumes of labels with all of your special requirements such as barcodes, logos and icons. And thanks to the handy PC connection via USB port, you can use extra functions from your PC. That makes it extremely easy to label whatever you need and create an orderly and organized working environment.

 PDF datasheet



Features & Benefits

• 6, 9, 12, 19 and 24mm tape : D1

• Semi graphical LCD with text grid of 100 by 16 pixels (1 line of text) and text or graphical annunciators on glass

• Software features include 7 character fonts and 1 symbol font

• Prints up to 5 lines on 24mm tape

• PC connectrion via USB

• Automatic tape cut

• Prints Code 39, Code 128, Codabar, UPC A/E, EAN 8/13, EAN 128, ITF-14 and Interleaved 2 of 5 bar codes.

• Power supplied by 6 x AA batteries (9V nominal for alkaline) or 9V adapter

• 10 memory formats (personal preferences)

• 15 last labels stored

• 10 memory labels (content)

• Max label length = 99 characters

• PC connectivity by means of USB

• RTC integrated with time displayed continuously when adapter operated

• Print tape speed 10mm/s

• Auto switch off after 2 minutes

• Format preview

• Incremental print function

• Patterns supported

• Horizontal and vertical printing

• Printing of up to 5 lines of text on 19 and 24 mm tape, 3 lines of text on 9 and 12 mm tape, 1 line on 6 mm tape

• Variations in printing format along a label by the use of format breaks

• automatically adjusted character sizes

• 6 styles of boxes

• Background patterns

• Underline, Italic, outline, shadow, mirror, vertical, bold and strikethrough text

• Print height : on 6mm tape : 5,36mm

• Print height : on 9mm tape : 7,06mm

• Print height : on 12mm tape : 10,87mm

• Print height : on 19mm tape : 15,80mm

• Print height : on 24mm tape : 18,06mm

• Dimensions: Width: 215 mm / Depth: 245 mm / Height: 85 mm
